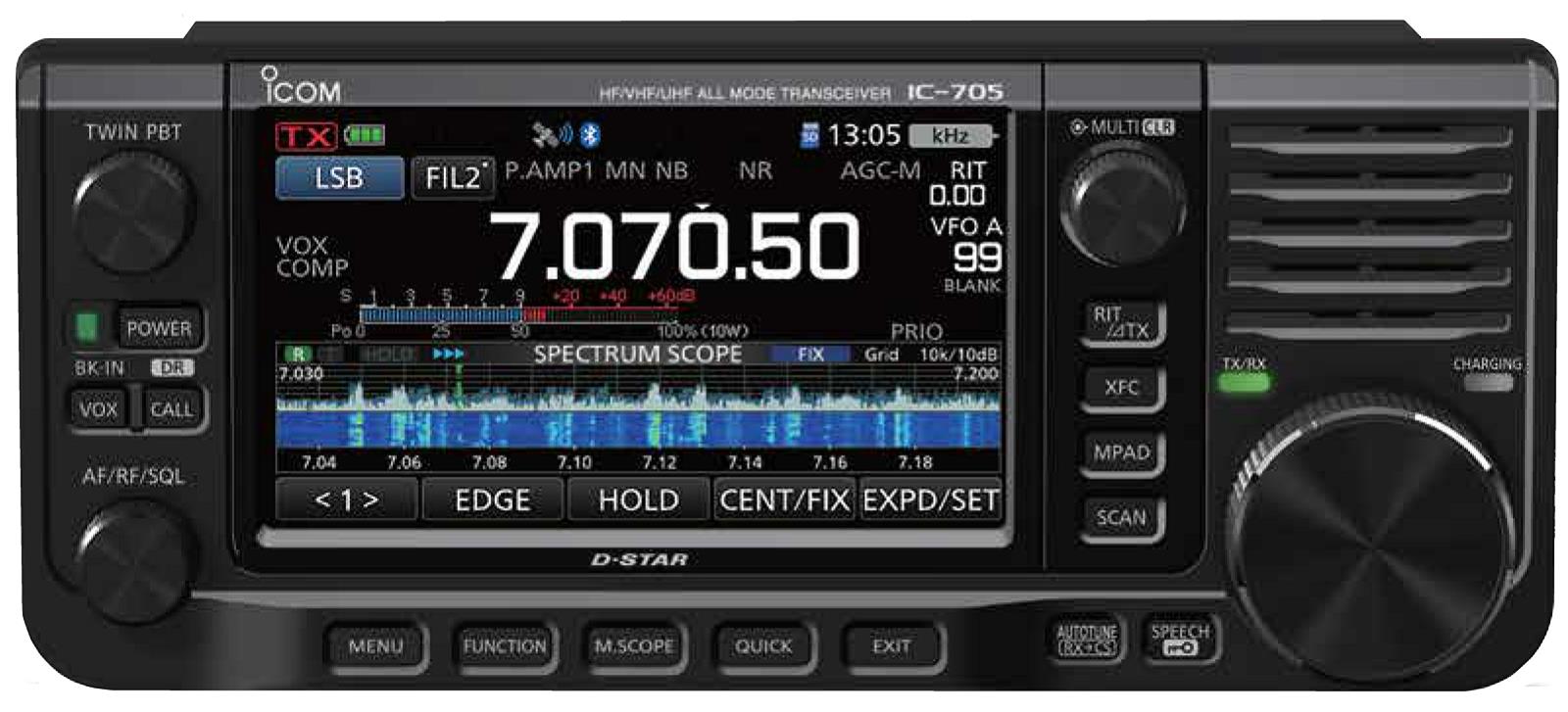

ICOM IC-705 HF/50/144/430 MHz All Mode Portable Transceiver w/ USB-C

Purchase a brand new Icom 705 radio with our USB-C / SEND upgrade board pre-installed. Available in United States and Canada only.

Icom IC-705 HF/50/144/430 MHz All-Mode Portable Transceiver brings the advanced features of the IC-7300, IC-7610 and IC-9700 to a portable QRP package. It features SDR Direct Sampling technology for low noise and low distortion receiver performance and incredible voice and digital transmission capabilities. Along with the same color touch screen and high speed, high resolution of the real-time spectrum scope and waterfall display, the rich set of features in the IC-705 will easily place this radio as the "Best Ever" All-Band All-Mode Portable!

Here are many of the advanced features of the Icom IC-705 Portable Transceiver:

* "Base Station" performance in compact package that you can hold with one hand!

* Dimensions (WHD): 7.9 x 3.1 x 3.3 in. (20.0 x 8.0 x 8.5 cm)

* All-band All-mode Transceiver Capability: 160-6m+2m+70cm; SSB/CW/RTTY/AM/FM/DV (D-STAR)

* Full D-STAR capabilities including DR mode and Terminal Mode/Access Point Mode

* Send, receive and view images on the IC-705 with no application software required

* "General Receive" coverage from MW through 148 MHz, 430-450 MHz

* Receives AM and FM Broadcast Bands and Air Band

* Output power is 10W on external 13.8V supply or 5W with included clip-in rear panel battery pack (BP-272 Li-ion); supports QRP and QRP operation down to 0.5 W

* 4.3 in. color touchscreen display – same as used in the Icom IC-7300 and IC-9700

* High-speed, high-resolution, real-time spectrum scope and waterfall display

* SDR Direct Sampling below 25 MHz and Down-conversion IF above 25 MHz

* Built-In GPS tracking logger, repeater locator and finds nearby D-STAR repeaters

* USB port (micro-B) for direct interface

* Wireless LAN (802.11 b/g/n Wi-Fi) for remote operation

* Bluetooth - supports smartphone linking, remote control and Bluetooth wireless headsets and headphones

* microSD Card Slot (microSD card not included)

* Includes HM-243 Speaker/Mic with multi-function buttons

* Optional LC-192 Multibag Backpack for easy portable operations

Note: A single BNC antenna connector functions for all bands
